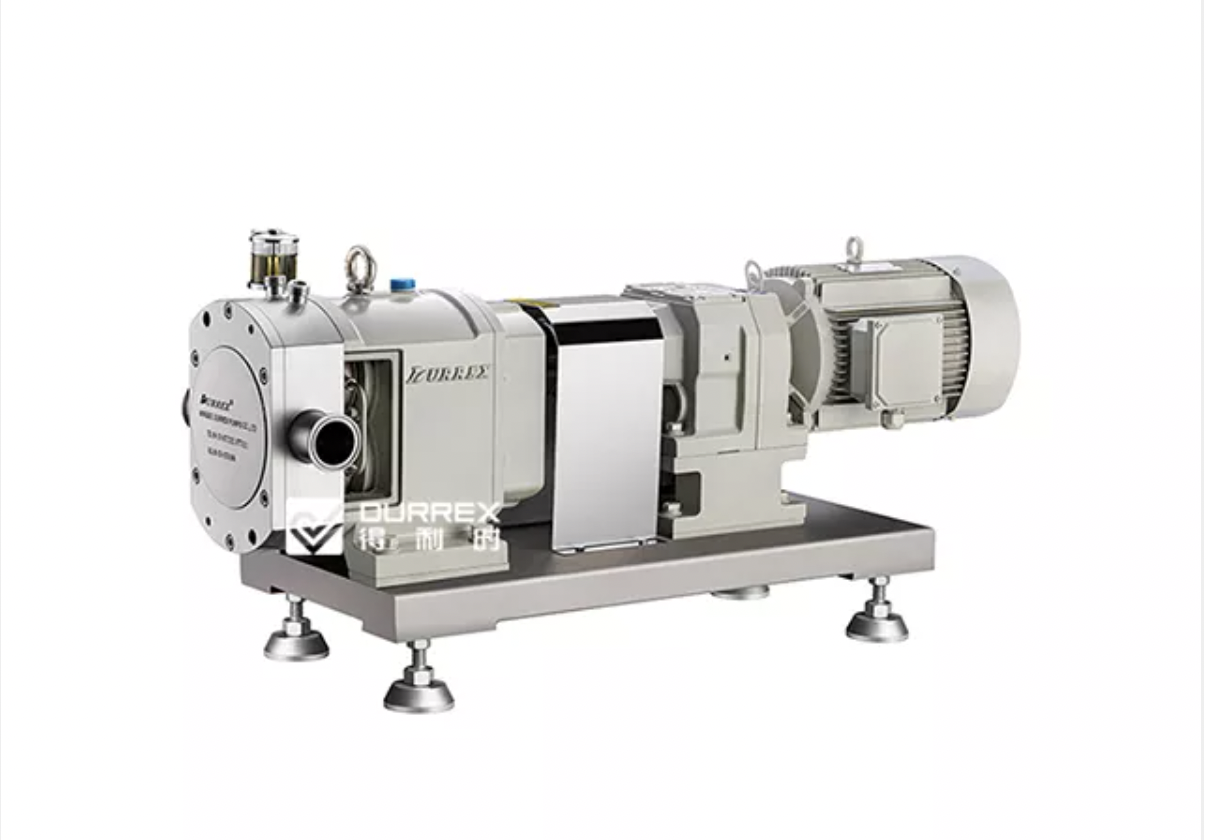

Lobe Pump with adjustable base plate

Lobe Pump with adjustable base plate

The base plate of the lobe pump is adjustable, allowing the pump height to be set according to on-site installation requirements and facilitating connection between the pump and the pipeline.

Categories: Durrex Lobe and Homogenous Pumps, Lobe Pumps, Pumps For Liquids

Read More Close

Technical Parameters

Item	Type	Capacity (L/r)	Rotation speed (r/min)	Rated flow （m³/h)	Dischare pressure （Mpa）	Power （kw)	Suction pressure （Mpa）	Viscosity （cp）	Standard Port size (mm)	Enlarged Port size (mm)
1	15TLS12-0.5C	0.04	10-720	0.5	0.1-1.2	0.25-1.5	0.08	10-1000000	15	25
2	25TLS12-2C	0.15	10-720	2	0.1-1.2	0.25-2.2	0.08	10-1000000	25	40
3	40TLS12-5C	0.32	10-500	5	0.1-1.2	0.37-3	0.08	10-1000000	40	50
4	50TLS12-10C	0.65	10-500	10	0.1-1.2	1.5-7.5	0.08	10-1000000	50	65
5	60TLS12-15C	1.1	10-500	15	0.1-1.2	2.2-11	0.08	10-1000000	65	80
6	65TLS12-20C	1.74	10-500	20	0.1-1.2	2.2-15	0.08	10-1000000	65	80
7	75TLS12-30C	2.6	10-500	30	0.1-1.2	3-22	0.08	10-1000000	80	100
8	80TLS12-40C	3.65	10-500	40	0.1-1.2	4-30	0.08	10-1000000	100	125
9	100TLS12-60C	5.2	10-500	60	0.1-1.2	5.5-45	0.08	10-1000000	125	150
10	125TLS12-80C	6.8	10-500	80	0.1-1.2	7.5-55	0.08	10-1000000	125	150
11	140TLS12-120C	9.8	10-400	120	0.1-1.2	11-75	0.08	10-1000000	150	200
12	150TLS12-150C	12.8	10-400	150	0.1-1.2	15-110	0.08	10-1000000	150	200
13	200TLS12-200C	15	10-300	200	0.1-1.2	18.5-132	0.08	10-1000000	200	250
14	250TLS12-300C	20	10-300	300	0.1-1.2	22-160	0.08	10-1000000	250	300
15	300TLS12-400C	30	10-300	400	0.1-1.2	37-220	0.08	10-1000000	300	350
16	320TLS12-500C	40	10-280	500	0.1-1.2	45-280	0.08	10-1000000	300	350
17	350TLS12-650C	50	10-280	650	0.1-1.2	55-355	0.08	10-1000000	350	400
18	370TLS12-800C	60	10-260	800	0.1-0.6	55-220	0.08	10-1000000	350	400
19	400TLS12-900C	70	10-260	900	0.1-0.6	75-280	0.08	10-1000000	400	450
20	420TLS12-1000C	80	10-260	1000	0.1-0.6	90-355	0.08	10-1000000	400	450

Product Performance

A gap is maintained between the rotors and the pump body, preventing friction and extending service life.
Simple assembly and disassembly makes the pump easy to maintain and clean, with fewer wear parts.
Highly efficient and energy saving, with a low failure rate, reliable sealing and low noise.
Different rotor types can be interchanged within the same pump model.
Capable of pumping viscous media ranging from 1 cP to 2,000,000 cP.
Capable of pumping mixtures of gas, liquid and solid media.
When equipped with an inverter, the flow rate can be adjusted according to the end user’s requirements.
Flange, threaded or clamp connections can be selected as required.
Adheres to CIP and SIP hygiene standards. Surface roughness ranges from 0.2 to 0.8 μm, with 3-A and FDA certification.
The hygienic safety valve features a built-in design.
