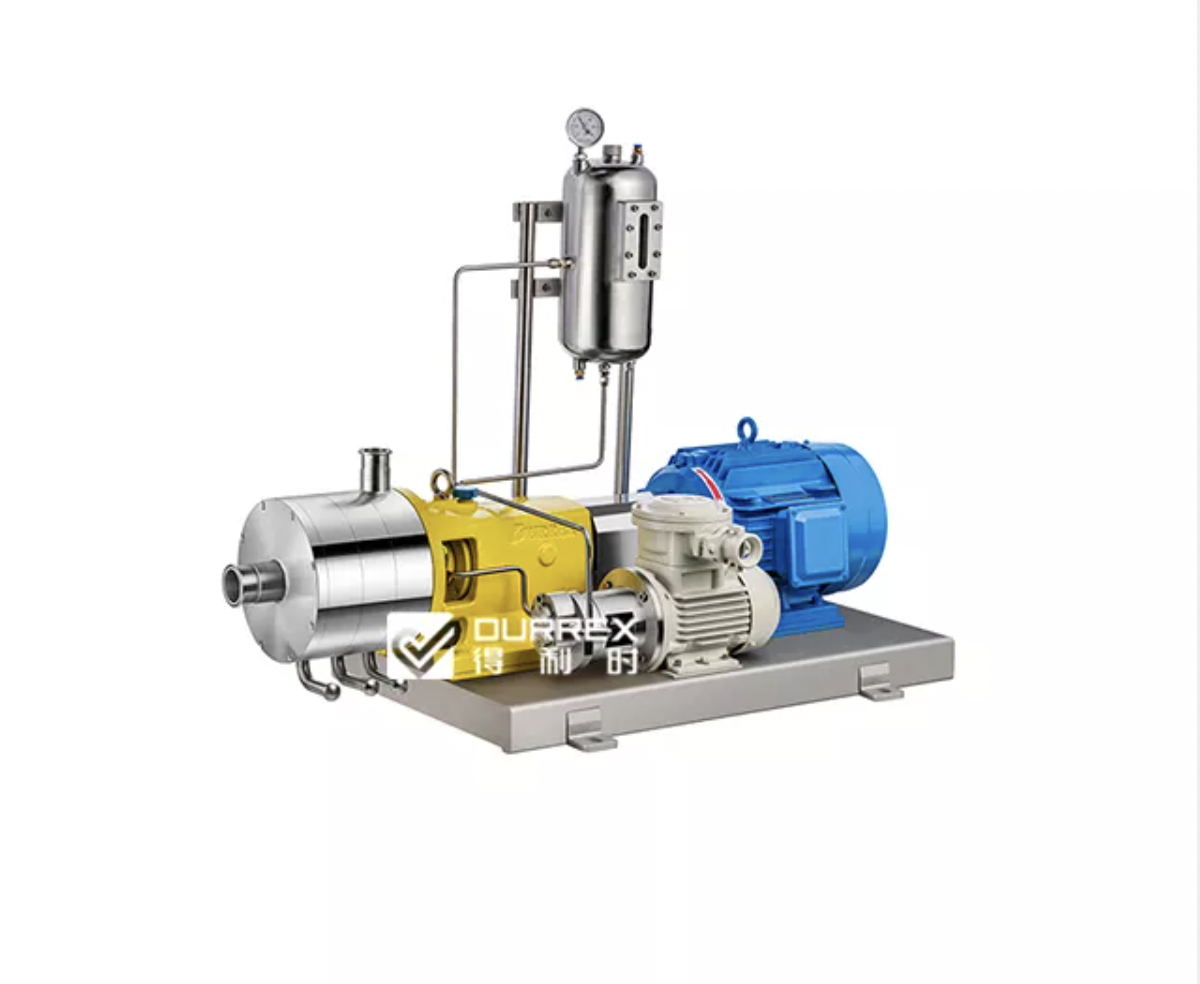

Homogeneous Pump with Cooling System

Homogeneous Pump with Cooling System

Homogeneous pumps operate at high speeds, which causes the mechanical seals to generate significant heat. The double mechanical seals must therefore be flushed during operation to prevent dry running.

Where cooling liquid is unavailable on site, a cooling tank can be used to circulate a lubricating medium and provide cooling. Standard Plan 52, 53A, 53B and other cooling systems can also be configured according to the end user’s requirements.

Categories: , ,
Read MoreClose

Technical Parameters

Item Type Power (kw) Rotation speed (r/min) Flow (m3/h) Pressure  (MPa) Inlet Dia (mm) Outlet Dia (mm)
1 DHX3-80B 2.2～3 960～2950 0.5-1 0.1～1.2 25 20
2 DHX3-100B 4～7.5 960～2950 1-2 0.1～1.2 25 20
3 DHX3-120B 7.5～11 960～2950 2-5 0.1～1.2 50 40
4 DHX3-140B 11～18.5 960～2950 3-10 0.1～1.2 50 40
5 DHX3-165B 15～30 960～2950 5-15 0.1～1.2 65 50
6 DHX3-185B 18.5～37 960～2950 10-25 0.1～1.2 65 50
7 DHX3-200B 22～45 960～2950 15-35 0.1～1.2 80 65
8 DHX3-220B 37～75 960～2950 20-50 0.1～1.2 100 80
9 DHX3-240B 45～90 960～2950 30-65 0.1～1.2 125 100
10 DHX3-260B 55～110 960～2950 40-80 0.1～1.2 125 100
11 DHX3-290B 45～90 720～1450 50-100 0.1～1.2 150 125
12 DHX3-320B 55～110 720～1450 60-120 0.1～1.2 150 125
13 DHX3-350B 75～160 720～1450 80-150 0.1～1.2 200 150
14 DHX3-380B 90～220 720～1450 100-200 0.1～1.2 200 150
15 DHX3-430B 110～280 720～1450 120-250 0.1～1.2 250 200
16 DHX3-480B 160～315 720～1450 150-300 0.1～1.2 300 250

Product Performance

  1. The homogeneous emulsification pump efficiently combines mixing, dispersion, crushing, dissolution, refining, homogenisation and emulsification.
  2. No dead zones, with high efficiency and energy savings. Simple assembly and disassembly make the pump easy to maintain and clean.
  3. The pump can operate continuously in a circulation loop or in a single pass.
  4. Different stator and rotor structures can be interchanged within the same pump model.
  5. Different pump structures, rotors and stators can be selected according to the operating conditions.
  6. A cooling system is available as an optional feature according to the user’s requirements.
