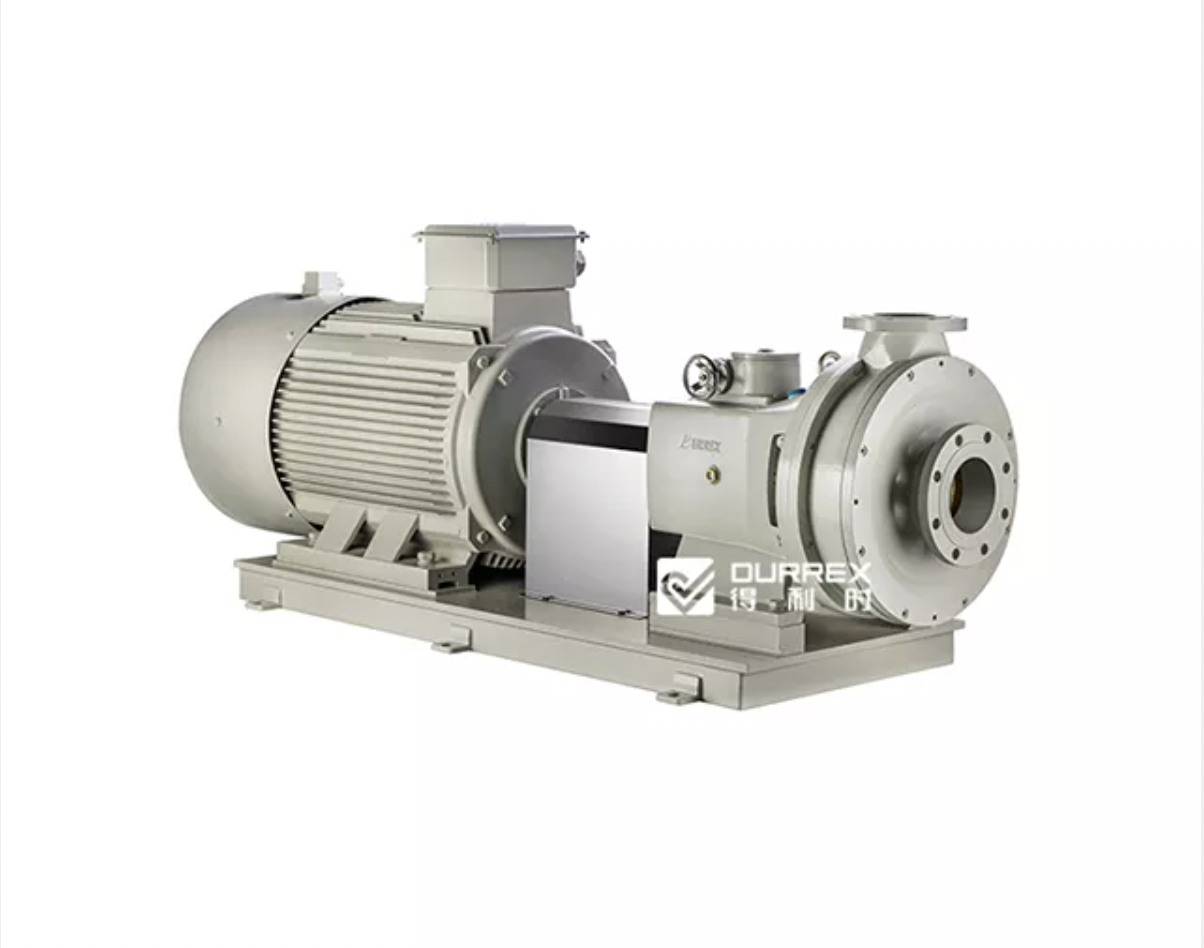

Grinding Pump with Manual-adjustable gap

The manually adjustable gap grinding pump is a high-performance homogenising pump that combines crushing, decomposition, depolymerisation, mixing, refining, homogenisation and emulsification.

Depending on the operating conditions and process requirements, the grinding pump can perform either coarse or fine grinding. The grinding gap is adjusted using an external handwheel, with an adjustment range of 0.2 mm to 8 mm.

Technical Parameters

Type	Power (Kw)	Rotation speed (r/min)	Flow (m³/h)	Bearing pressure (MPa)	D DN(mm)	E DN(mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	A (mm)	B (mm)	C (mm)	H (mm)	n-d (mm)
DHG25-320B	22-45	1450	40～60	0.1-1.2	125	100	1500	232	590	417	1800	670	620	667	338	6-φ24
DHG25-380B	30-75	960	60～80	0.1-1.2	150	125	1700	251	690	427	2156	810	760	763	425	6-φ24
DHG30-480B	55-90	960	80～120	0.1-1.2	200	150	1800	240	690	475.5	2343	810	760	963	500	6-φ24

Product Performance

The toothed disc can be fitted with a specialised grinding structure, with the clearance adjusted through the toothed disc.
A high-performance shearing toothed disc improves grinding efficiency.
The modular toothed disc can be interchanged between pumps of the same model, reducing operating and maintenance costs.
Adjusting the movable toothed disc simplifies maintenance and reduces maintenance difficulty.
A mechanical seal is used as the shaft seal, providing a longer service life.
The combined turbine and cam structure allows for easy operation and simple maintenance.
