The PERIPOWER peristaltic pump is a powerful self-priming positive displacement pump, which impresses customers with its extreme robustness and ease of maintenance. It operates in such a way that abrasive media and media that is sensitive to shearing can be gently pumped. Our peristaltic pumps are ideally designed to efficiently pump media with a viscosity of up to 20,000 mPas, 25 % dry matter content as well as particles with a size of up to 40 % of the hose diameter. You can rely on the PERIPOWER pump to deliver first-class performance in a huge range of applications.
Hoses are replaced in a matter of minutes – no need for special tools or specialist staff, keeping your system ready for use at all times.
The FLUX PERIPOWER peristaltic pump needs very little maintenance and is designed for longevity. Should maintenance be required, the user-friendly design allows the hose to be replaced with ease in a matter of minutes. There is no need for special tools, and specialist staff don’t have to be present on site. keeping your systems ready for use at all times.
The PERIPOWER peristaltic pumps are self-priming, rotating positive displacement pumps. This means that the medium to be pumped is drawn in through the hose and then pressed towards the outlet in the pump housing.
The function is based on a rotating rotor with rollers on the opposite side. These rollers squeeze and release the flexible hose. The hose is run along the housing. Due to mechanical pressure, there is a division between the medium in the suction and discharge side, producing a specific transfer space, which is pushed/displaced along the hose as the rollers roll away.
Thanks to this gentle and low-shear manner of pumping, PERIPOWER makes light work of pumping media that is abrasive, viscous or contains solids. FLUX rollers are made from robust POM and the hoses are available in NRH, NBR or EPDM.
With peristaltic pumps, the level of solid content and the viscosity of the medium is irrelevant to the flow rate because the volume to be pumped is determined simply by the motor speed in combination with the pump size. The delivery quantity can be controlled easily and accurately using a frequency converter.
Housings are available in polyurethane, steel and stainless steel.
We offer three different hose materials. There are also FDA-compliant variants. The maximum temperature is 80 °C.
Available materials:
NRH:
NBR:
EPDM:
We provide a huge choice of many different sizes of peristaltic pumps. So you can be sure that you’ll find the right product for your application. We are happy to provide advice on the phone or on-site.

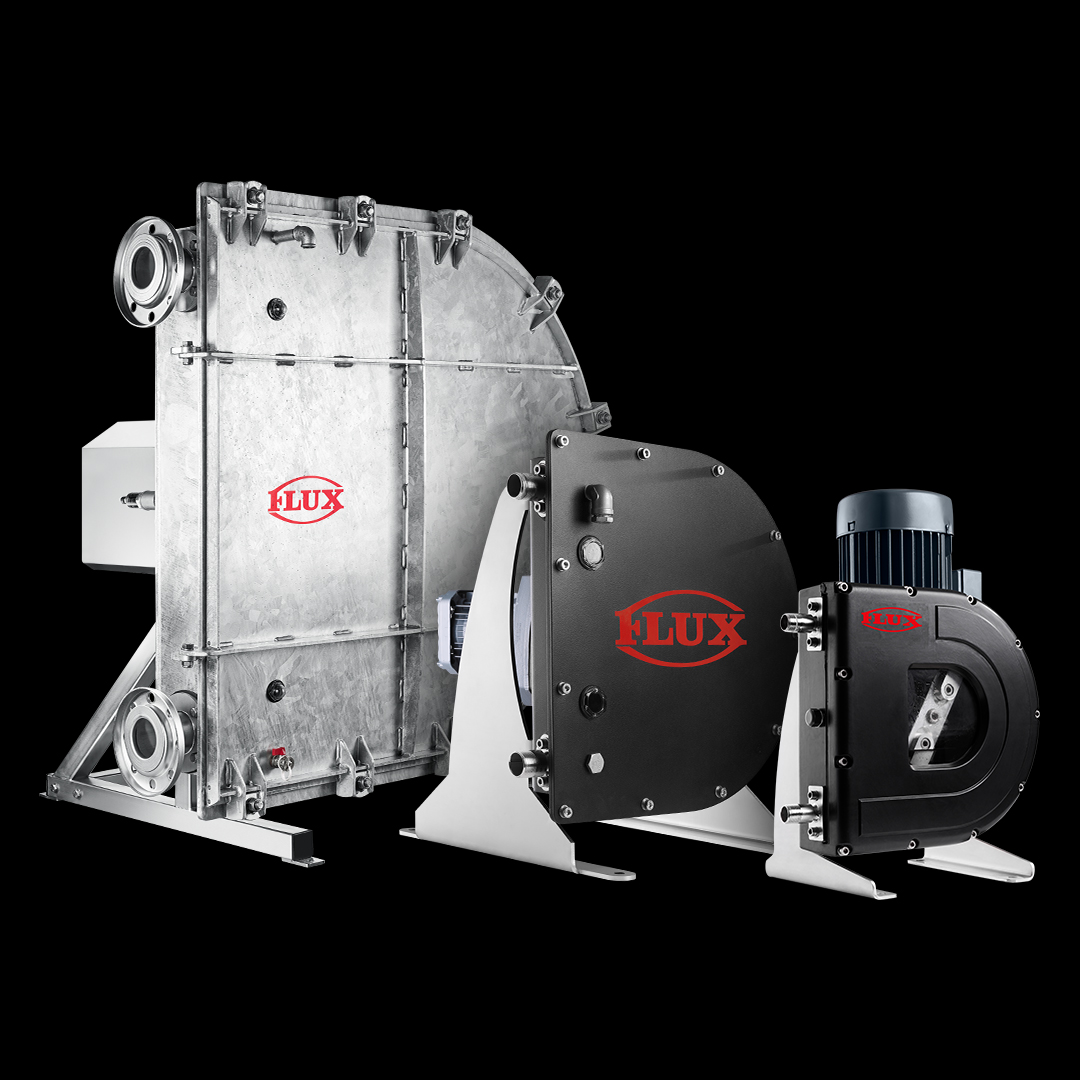

PERIPOWER FHP-10 and FHP-15 peristaltic pump: For versatile use with a displacement volume of up to 330 l/h and around 20,000 mPas.
PERIPOWER FHP-25 to FHP-50 peristaltic pump: For versatile use with a displacement volume of up to 6,200 l/h and around 20,000 mPas. Solids of up to approx. 25 mm can be pumped.
PERIPOWER FHP-65 to FHP-200 peristaltic pump: For versatile use with a displacement volume of up to 300,000 l/h and around 20,000 mPas. Solids of up to approx. 100 mm can be pumped.
