Technical Data
- Protection class: IP 55
- Ex: II 2 G Ex de IIC T6
- Ventilation: outside
- Voltage (Volt): 230V
- Frequency: 50-60 Hz
- Power (Watt): 600 W
- Speed setting: Stepless
- Weight: 6.2 kg
- Undervoltage protection: Yes

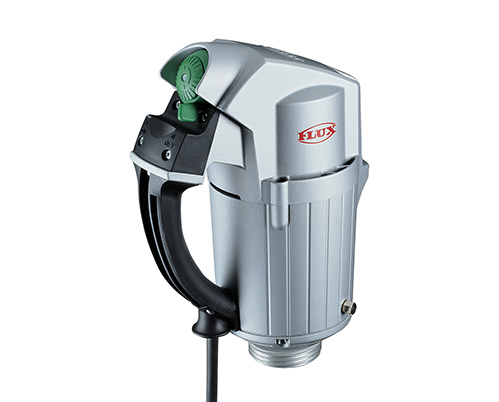

Flux Brushless Engine FBM 4000 Ex
World’s first brushless drum pump motor.
The compact built brushless motor FBM 4000 Ex has a very robust housing with double jacket made of aluminum and is very quiet. The soft start and the easy-to-use speed setting, which is integrated in the switch knob, allow for sensitive dosing. Speed, current and temperature are monitored electronically. The integrated undervoltage monitoring prevents an uncontrolled start of the pump and thus guarantees optimal safety.
Advantages
- Very wear-resistant
- maintenance-free
- Low life cycle costs
- With stepless speed adjustment
- Especially low noise
- Very robust housing with double jacket made of aluminum
- Increased duty cycle possible
