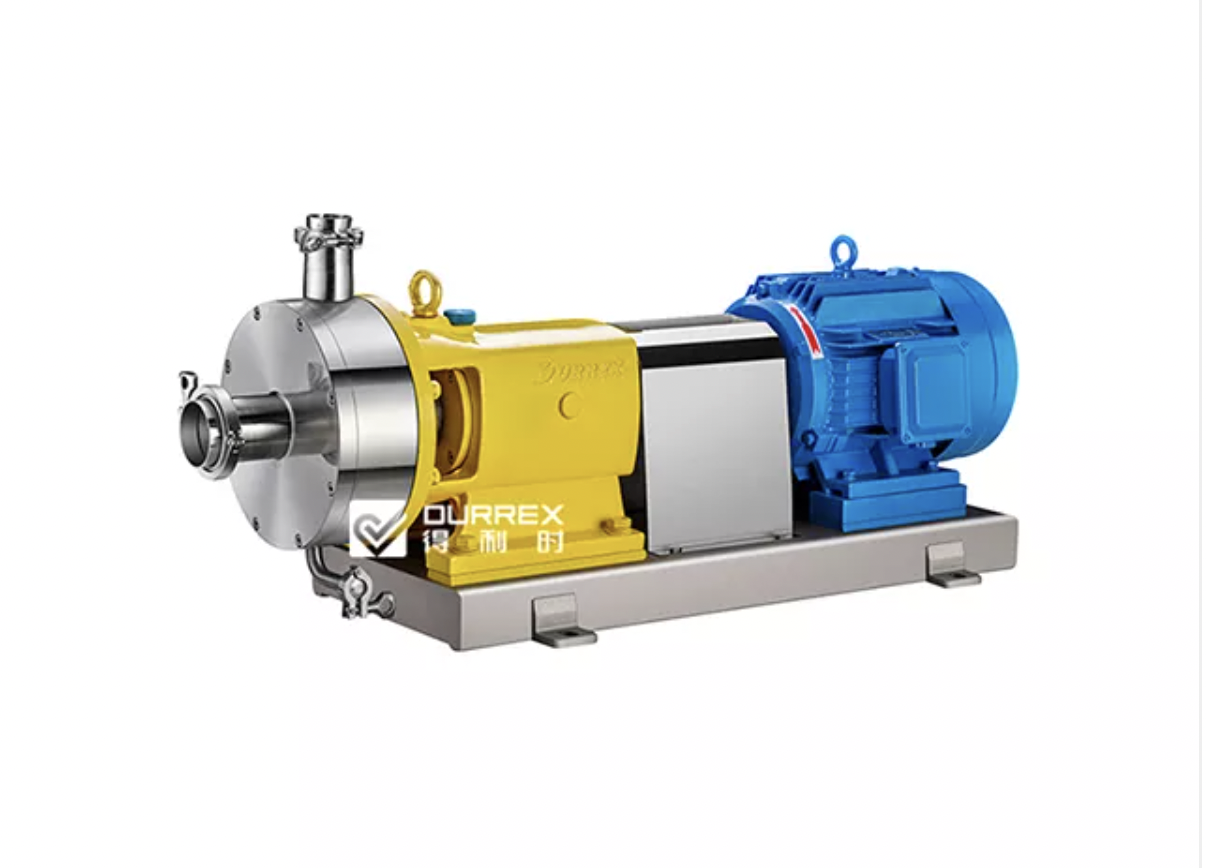

DHX1 Homogeneous Emulsification Pump

DHX1 Homogeneous Emulsification Pump

The working chamber of the DHX1 Homogeneous Emulsification Pump is equipped with a double-layer stator and double-layer rotor, which form the main working components of the pump.

As the rotor operates at a high speed, centrifugal and hydraulic forces create a combination of strong shearing, centrifugal extrusion, impact crushing, liquid-layer friction and turbulent mixing. This enables immiscible solid, liquid and gas phases to be rapidly refined, dispersed and emulsified into a uniform mixture.

Categories: , ,
Read MoreClose

Technical Parameters

Item Type Power (kw) Rotation speed  (r/min) Flow (m3/h) Pressure (MPa) Inlet Dia (mm) Outlet Dia  (mm)
1 DHX1-80B 0.75～1.1 960～2950 0.5-1 0.1～1.2 25 20
2 DHX1-100B 1.1～2.2 960～2950 1-2 0.1～1.2 25 20
3 DHX1-120B 2.2～3 960～2950 2-5 0.1～1.2 50 40
4 DHX1-140B 3～5.5 960～2950 3-10 0.1～1.2 50 40
5 DHX1-165B 5.5～11 960～2950 5-15 0.1～1.2 65 50
6 DHX1-185B 7.5～15 960～2950 10-25 0.1～1.2 65 50
7 DHX1-200B 11～22 960～2950 15-35 0.1～1.2 80 65
8 DHX1-220B 15～37 960～2950 20-50 0.1～1.2 100 80
9 DHX1-240B 18.5～45 960～2950 30-65 0.1～1.2 125 100
10 DHX1-260B 22～55 960～2950 40-80 0.1～1.2 125 100
11 DHX1-290B 22～37 720～1450 50-100 0.1～1.2 150 125
12 DHX1-320B 30～45 720～1450 60-120 0.1～1.2 150 125
13 DHX1-350B 37～55 720～1450 80-150 0.1～1.2 200 150
14 DHX1-380B 45～75 720～1450 100-200 0.1～1.2 200 150
15 DHX1-430B 55～90 720～1450 120-250 0.1～1.2 250 200
16 DHX1-480B 75～110 720～1450 150-300 0.1～1.2 300 250

Product Performance

  1. The homogeneous emulsification pump efficiently combines mixing, dispersion, crushing, dissolution, refining, homogenisation and emulsification.
  2. No dead zones, highly efficient and saves energy. Simple assembly and disassembly make the pump easy to maintain and clean.
  3. The pump can operate continuously in a circulation loop or in a single pass.
  4. Different stator and rotor structures can be interchanged within the same pump model.
  5. Different pump structures, rotors and stators can be selected according to the operating conditions.
  6. A cooling system is available as an optional feature according to the user’s requirements.
