Semi-Auto Capsule Filler for 35 000 caps per hour

Semi-Automatic Capsule Filling Machine is designed for precision manufacturing requirements of modern pharmaceutical procedures. The machine provides a high Degree of automation with higher levels of filling weight accuracy. Capsule Filling Machine is suitable to fill capsules of all sizes with powder, granules or pellets. Machine is made as per GMP standard, has all Stainless-Steel covering and gives output of up to 35000 capsules per hour.

Machine is constructed in mild steel angel welded & powder coated frame. All product contact parts are made from Stainless Steel 316 materials & all covering made from Stainless Steel 304 sheet. Other machine parts like Cams, Gears, Shafts are bolted.

The design and construction of the machine encompasses all the GMP aspects of pharmaceutical sanitation Its advanced design meets the requirement of modern pharmaceutical procedures.

Loading trays are in Magnesium alloy light weight material. We are giving here below information of holes per ring.

Size of Capsule	No of Holes in Loading Ring
Size 00 Capsule	480
Size 0 Capsule	600
Size 1, 2, 3, 4 & 5 Capsules	720

Categories: Capsule & Tableting Equipment, Semi-Automatic Capsule Fillers

Features

Compact GMP
Programmable Logic Control (PLC) & display of all
All the drive elements and the cabling at the right side at separate
Crevice free smooth Stainless-Steel pharmaceutical
Changeover of capsule size takes very less
Filling station which accepts too less change over time of powder to
On line Capsule Polishing & Sorting can be (Optional)
No operator requires for Capsule Polishing &
Automatic empty capsule separation after Loading – No need to turn by
No extra power
No need to store filled capsule for
Loader gets disengaged automatically after one complete rotation of loading
Auger with four speeds to fill different type of powders &
Modified design of drug hopper reduces time for dismantling and unloading of
Auto-drug hopper in-feed mechanism reduces weight variations & improves
Automatic declutching of loader when the loading rings are full minimizes operator attention and ensures optimum production.
Infinitely variable filling table speed ensures dosage
Automatically drug hopper in-feed mechanism eliminates weight variation, reduces operator fatigue and enhances productivity.
A choice of four augur speeds enables the machine to handle a wide variety of powder from highly hygroscopic to the very free-flowing.
Automatic Capsule Closing System ensures faster, safer closure and ejection of filled (Optional)

Technical Specifications

Model	LSCF – 35
Production Output	Up to 36000 Capsules/hour
M.O.C. of Loading Ring	Magnesium Alloy (Light Weight)
Number of Holes/Ring	Size 00: 480 Size 0: 600 Size 1, 2, 3, 4 & 5: 720
Product Contact Parts	AISI SS 316

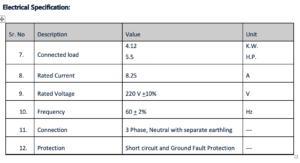

Loader drive:	0.25 H.P., 380/440 Volts, 3 Phase, 50 Hertz
Auger drive:	1.5 H.P., 380/440 Volts, 3 Phase, 50 Hertz
Filling Table drive:	0.5 H.P., 380/440 Volts, 3 Phase, 50 Hertz
Vacuum Pump:	3 H.P., Oil Type

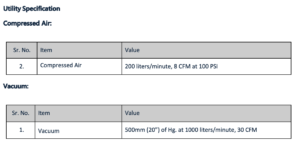

Vacuum:	500 mm (20) of Hg at 1000 Liters/min (30CFM)
Compressed air:	200 Liters/min (8 CFM) at 100 psi
Display	Multi-Color
