Technical Data
- Flow rate: max. 240 l / min
- Delivery height: max. 13 mWs
- Viscosity: min. 1 mPas - max. 1000 mPas
- Outer tube diameter: max. 41 mm
- Material outer tube:
- Media / Fluids:
- Seal: with mechanical seal
- Container:
Pump set MINIFLUX for emptying IBC Flow Bins
The MINIFLUX pump set was designed to empty IBCs via their outlet. It is an alternative to vertical drum pumps when IBCs are not accessible from above or only with great effort. In addition, it is suitable when the natural outlet of the medium via the drain valve does not bring sufficient delivery pressure to z. B. quickly fill or promote in a higher lying container. The MINIFLUX is ideally powered by a collector or air motor.
Product Features
- For conveying from IBCs directly to the spout (with standard thread S60x6)
- Easy connection of the pump to the outlet through union nut
- Compact design
- Can be dismantled into two parts via clamp
- Low overall weight of 1.2 kg
- Does not have to be lifted on containers
- No need for free access via the container from above
- Ideally combinable with collector motor or air motor
Advantages
- Can also be used at low ceiling height
- Enables pumps to be pumped directly to the bottom outlet, even with stacked IBCs
- Significantly more flow and delivery pressure, compared to filling at the outlet tap via the hydrostatic pressure of the medium
- Overall small footprint
- Easy disassembly of the IBC through union nut
- Delivery against closed valve (eg fuel nozzle, flap valve, etc.) possible
Suitable Applications - media examples
- battery acid
- ammonia water
- glycols
- sodium hydroxide
- soap solution
- boric acid
- phosphoric acid
- hydrochloric acid
- Sulfuric acid (up to 80%)
- fruit acids

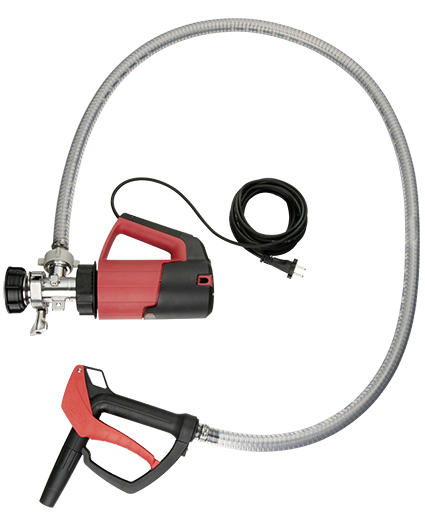

Consists of
- Container pump MINIFLUX in stainless steel
- Collector motor FEM4070, 230V, 50Hz, 500W
- PVC hose DN19, 2m long
- Fuel nozzle in polypropylene
