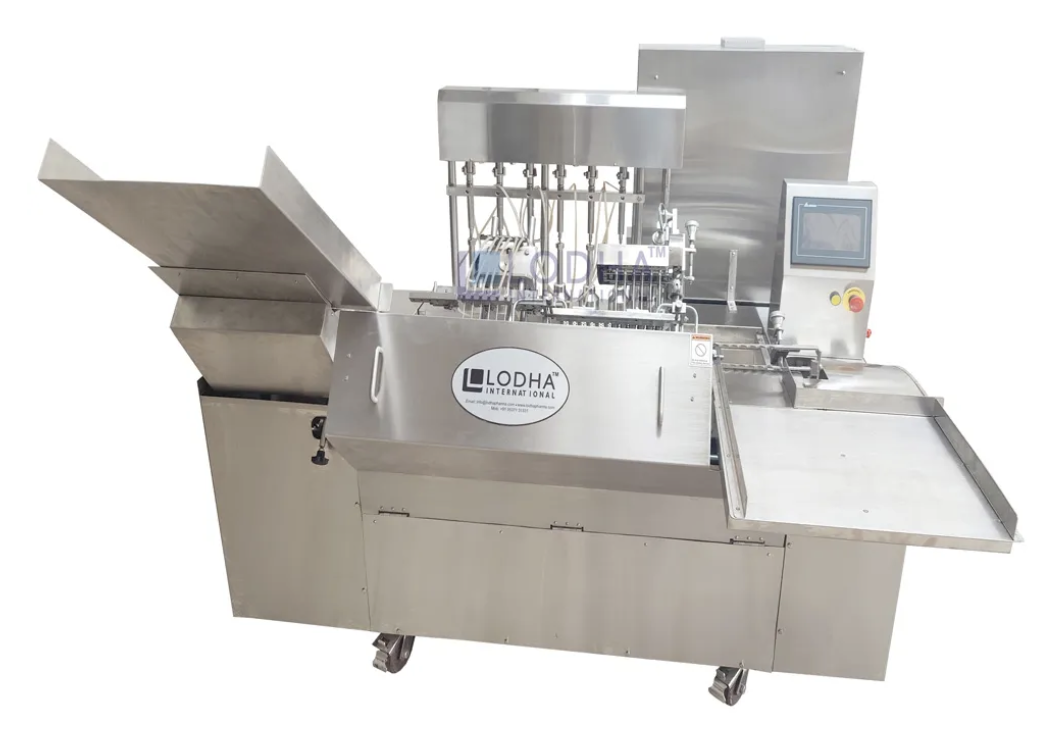

High Speed Ampoule Filling & Sealing Machine

High Speed Ampoule Filling & Sealing Machine Model LI-AFS 8 built on principle of slant travel of ampoules while filling and sealing, to take care of vide variation of ampoule neck dimensions, thicknesses of available standard ampoules.

The Filling unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing matt finish, Further, the large opening available at the bottom side for ease of absolute cleaning.
The pendant type electrical control panel is lifted from machine for ease of operation and safety.

The ampoule filling & sealing machine is a compact machine and performs the dual operation of filling and sealing. It is highly used in pharmaceutical industries as its highly precise operation helps in achieving advanced and high output rates. The ampoule filler sealer machine seals the ampules by placing stoppers over their head. This prevents the ampoules from getting adulterated and hence the medicinal value is preserved. The machine requires very little change over time and hence is quite easy to maintain & clean. Ampoule filling & sealing machine is built using SS that imparts durability thus making it suitable for prolonged operations. The filling station of ampoule filler and sealer machine may consist of multiple heads ranging from two to eight. Multiple heads are used for increased production rate as per the requirement. The ampoule filling sealing machine is a highly automated machine that helps in imparting high efficiency. It reduces the manpower required for the operation and hence the error caused due to labor is reduced to an optimum level.

Salient Features of Ampoule Filling & Sealing Machine

Compact GMP model
All contact parts of ampoules fill seal equipment made from AISI SS 316L & other Non-contact parts made from AISI SS 304.
Minimum change over parts from 1ml to 10ml ampoule size
“No Ampoule – No Filling” system
Ampoule neck centering during gas flushing and filling operations
Possibility of nitrogen gas flushing before, during and after filling
Full accessibility allows easy maintenance
Ampoule filling sealing machine equipped with pre-warming station
Minimum change over time, little maintenance & easy cleaning

Ampoule Filler Sealer Process Operation

The sterilized ampoule tray directly loaded in to slant hopper of the unit. The Synchronized star wheel delivers ampoules one by one on moving eccentric ampoule rack in four’s.
During the stoppage of rack sequentially pre-gassing, filling, post gassing, pre-heating and final sealing is achieved. Duly filled sealed ampoules then collected on collection tray automatically without hand touch.
