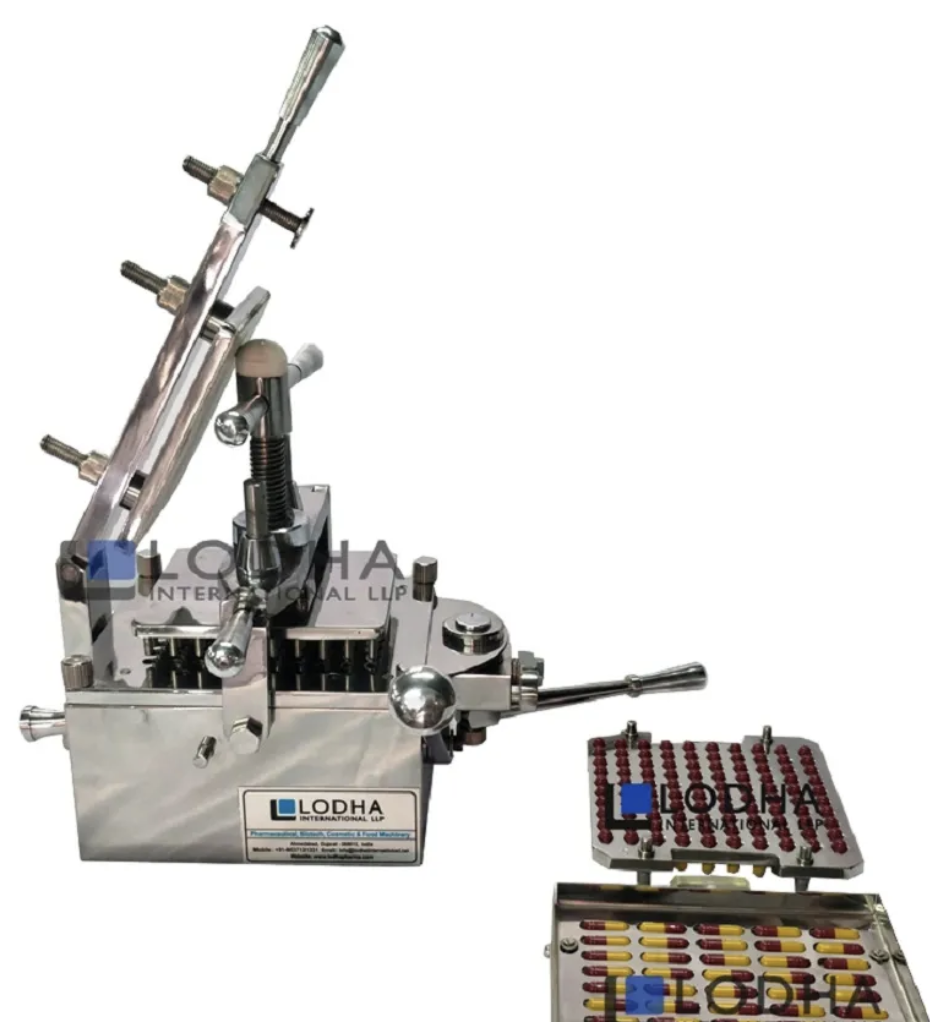

100 Holes Capsule Filling Machine with Orienter

Manufacturer of 100 Holes Capsule Filling Machine with Orienter helps the speed of the capsule filling process for R&D work, small clinical trials or other small operations. Machine is having 100 holes with 10 x 10 combinations made in stainless steel constructions meeting cGMP requirements. Machine can fill size 00 to size 5 capsules with help of interchangeable parts and different machine model. Machine designed in such a way that it can be easily dismantle for cleaning operations. Though all the operations are manual, the machine calls for precision machined components and assembled with highly skilled personnel.

Key Features of 100 Holes Capsule Filling Machine with Orienter

• Manual Capsule Filler & Orienter available in 100 holes.
• Change parts for each capsule size 00, 0, 1, 2, 3 or 4 as needed.
• 99% orientation & 100% capsule separation.
• Powder Tray is included to minimize powder loss.
• Lightweight feeder quickly positions capsules into Filler.
• Made with stainless steel for reduced static and long-life.
• Easy handling changes of size plates.
• Ergonomic features for easy cleaning and avoid of contaminations.

Process Operation:

• Fill empty capsules onto the loading tray and place tray onto the machine. Check the front knob it should be turned right side.
• Pull locking lever forward. Push down long handle which will lifts the caps off all the bodies. Set aside the tray containing all the caps.
• Push locking lever back, by which capsule bodies will drop down and become level with filling surface.
• Place powder tray on filler: keeps powder from spilling.
• Pour & spread the pre-measured powder. Move extra powder onto powder tray’s shelf. Lower tamper and lock.
• Turn handle to compress powder: this allows you to fill more powder in each capsule.
• Raise tamper & spread extra powder from shelf into capsules: ensures uniform fill weights.
• Return the tray containing caps to filler. Turn front knob to the left and lower locking plate. Engage lock for locking plate.
• Hold tamper handle and push down on long handle. Bodies are pushed up into caps: all the capsules are now locked in one step.
• Disengage lock for locking plate. Lift locking plate and turn front knob to the right.
• Push down long handle and remove tray of completed capsules.
• Capsules are filled now. You can turn tray and all the capsules will get out from the tray.
